Product Details

Physical properties:

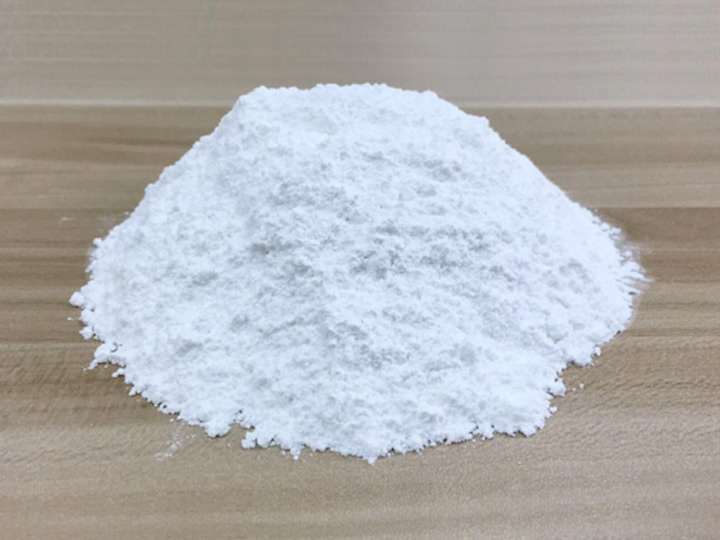

H-BN is composed of nitrogen atoms and boron atoms, has a layered crystal structure similar to that of graphite. It is a white powder showing loose, lubricated, easy to absorb moisture, light and other properties, which is also called "white graphite".
H-BN has theoretical density 2.27g/cm3and Moh's hardness 2. H-BN possess excellent electrical insulation, thermal conductivity, molten melts chemical compatibility, low thermal-expansion coefficient, and good stability at up to 2000℃under aneutral and/or reducing atmosphere, and to 3000℃ under a 0.1MPa nitrogenatmosphere, while only up to below 1000 ℃ in oxygen atmosphere.
H-BN is insoluble in water and decomposes very slowly in boiling water and produces small amount of boric acid and ammonia. It is chemically stable with weak acid and alkali at room temperature, while slightly soluble in hot acid and can be decomposed with molten NaOH and KOH.

Product Specifications:

The h-BN products produced by Suzhou Nanopure Materials Technology Co., Ltd. are synthesized at high temperature by using high-quality imported boric acid and melamine as raw materials. They are high quality in BN content and trace impurities, good crystalline, and tailored particle size distribution, and morphologies.

Basically, our products are classified as four grades as per downstream demands: ceramics grade (Cera-BN), thermal grade (Therm-BN), cosmetics grade (Cosm-BN), and lubricant grade (Lubr-BN).

Ceramics Grade (Cera-BN)

Used as high electrical voltage insulating components, evaporator boat for aluminum coating, refractory tube for electrical furnace, additive for electrical ceramics, crucible, and raw material for c-BN synthesis.

Thermal Grade (Therm-BN)

Typically used as filler in polymers such as PA, PE and various thermal interface materials to increase their thermal conductivity.

Cosmetics Grade (Cosm-BN)

Typically used as additive of cosmetics, it is gentle and very pearly.

Lubricant Grade (Lubr-BN)

Typically used as additive for high-grade automobile lubricants, demoulding agents for optical glass products, demolding mould discharging agent of casting forming, and injection molding, and additive of lubricating coating.

Typical Applications

H-BN has been widely used as per its unique properties:

1. Excellent lubrication properties

Solid lubricant for melt and glass parts de-molding, engine oil additive for automotive

2. Excellent electricity insulating properties

Filler for PTFE, insulators for electricity equipment parts, ultra-high voltage power grid, and plasma with high voltage and high frequency

3. Excellent thermal-conductivity properties

Filler for rubber, plastics, resins used in PCB, and LED, etc, ceramic electrical heater

4. Excellent anti-oxygen properties

Refractories, additive for advanced ceramics

5. Excellent anti-corrosive properties against molten metals

Crucible for advanced smelting, nozzle for amorphous strip, continuous casting, evaporating, and evaporator boat for capacitor film aluminum, tube aluminum, aluminum display, preservation of aluminum, laser anti-counterfeiting aluminum, trademark bronzing.

6. Excellent anti-nuclear-irradiation properties

Neutron-shielding fillers for nuclear irradiative power

7. Raw materials for c-BN ultra-hard materials

High-performance cutting tools for geological exploration and for oil drilling drill

8. Special lustre properties

•
  Hexagonal Boron Nitride (h-BN)
